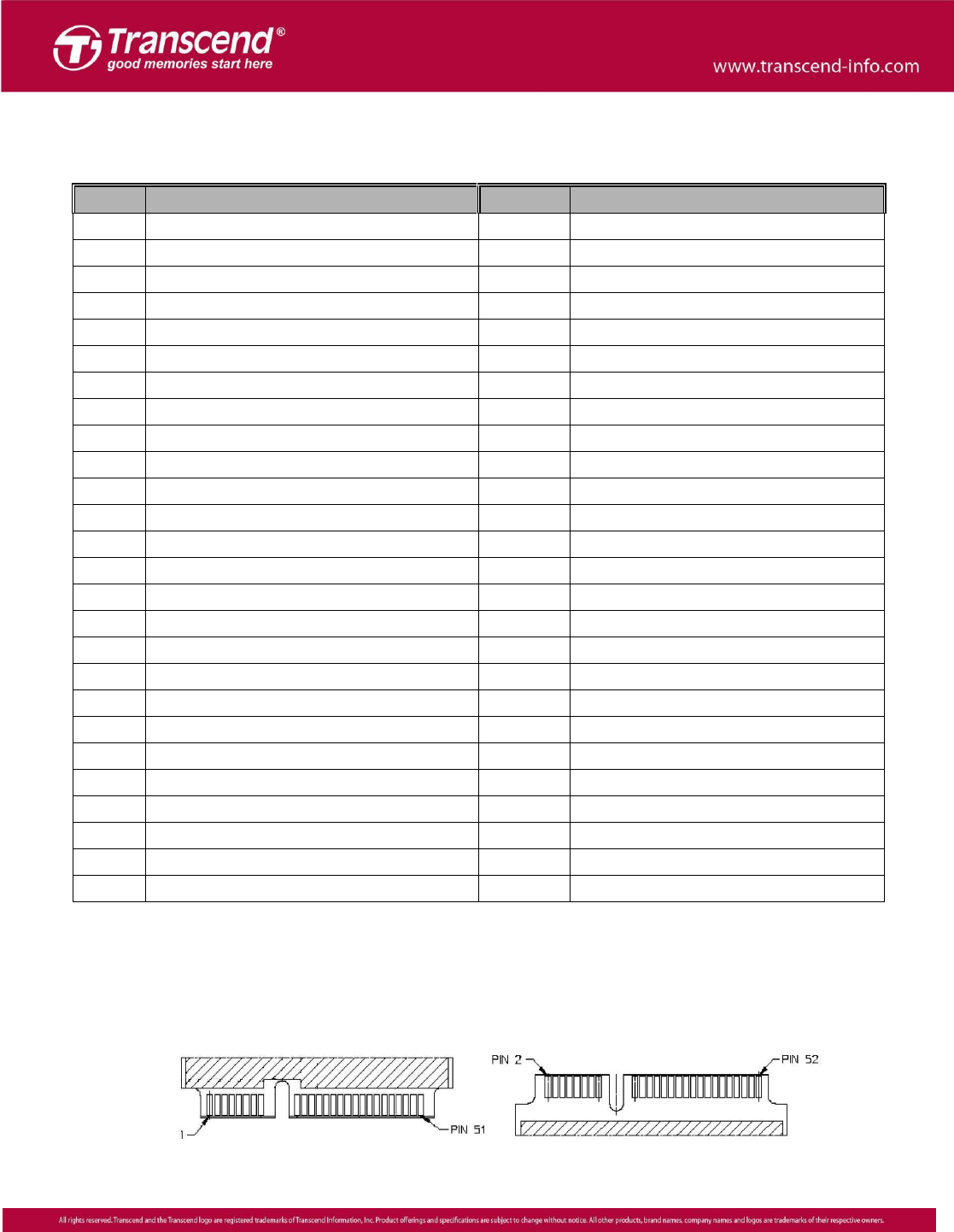

Pin Assignments

Pin No.

Pin Name

Pin No.

Pin Name

01

NC

02

3.3V

03

NC

04

GND

05

NC

06

NC

07

NC

08

NC

09

GND

10

NC

11

NC

12

NC

13

NC

14

NC

15

GND

16

NC

17

NC

18

GND

19

NC

20

NC

21

GND

22

NC

23

TX+

24

3.3V

25

TX-

26

GND

27

GND

28

NC

29

GND

30

NC

31

RX-

32

NC

33

RX+

34

GND

35

GND

36

NC

37

GND

38

NC

39

3.3V

40

GND

41

3.3V

42

NC

43

NC

44

NC/DEVSLP(optional)

45

Vendor

46

NC

47

Vendor

48

NC

49

DAS/DSS*

50

GND

51

Presence Detection**

52

3.3V

* Device Activity Signal / Disable Staggered Spin-up

** Connect to GND internally
